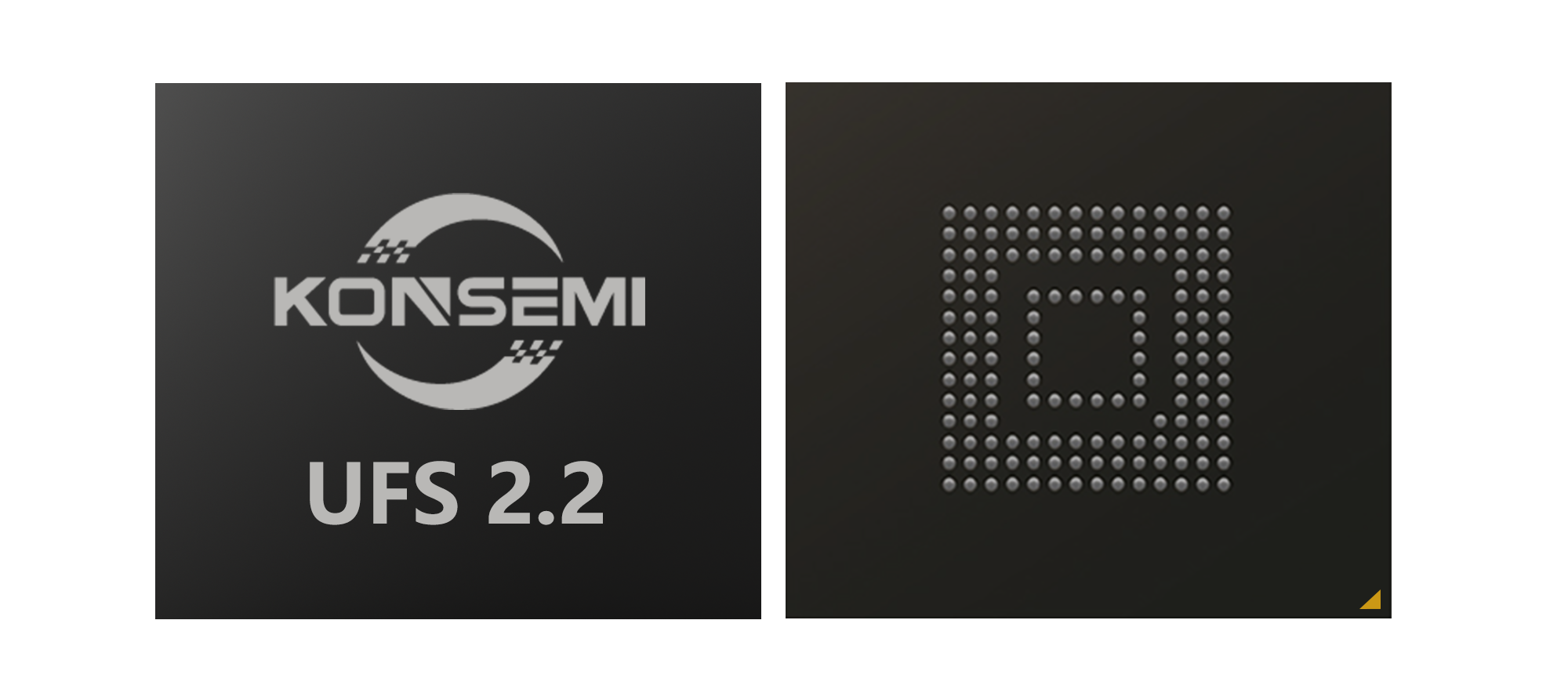

    UFS 2.2

    Large capacity, high performance, lower power consumption, supporting new features such as write enhancement, deep sleep, and performance limit notification. The capacity can reach up to 512GB, and it is packaged in FBGA153 with a compact size, suitable for mid to high end mobile terminals and high-end smart devices.
    Tip: If you need to view specific product attribute differences, please communicate with us.
    Back

    Product advantages

    • Support host performance improvement technology to meet the durability requirements of mobile and portable devices.
    • Adopting advanced processes and low-power architecture to provide longer battery life for mobile devices.
    • Support functions such as writing growth technology, deep sleep/performance adjustment notification items, etc.
    • Built in LDPC 3.0 ECC error correction engine, supporting both hard and soft decoding, with outstanding error correction capabilities.
    • Provide customized hardware instruction sets and firmware optimization, supporting machine learning and scenario optimization.
    • The modules have undergone rigorous ATE and system level testing to ensure reliability and compatibility.

    Product Parameters

    Product Name Product Model capacity encapsulation size Supported Protocols Operating Temperature
    UFS KS52AAD0 128GB FBGA153 11.5*13*1.0mm UFS 2.2 -25°C~85°C
    UFS KS52AAE0 256GB FBGA153 11.5*13*1.0mm UFS 2.2 -25°C~85°C
    UFS KS52AAF0 512GB FBGA153 11.5*13*1.0mm UFS 2.2 -25°C~85°C

    Application field

    smartphone
    Smart terminal
    High end tablet
    AR/VR devices
